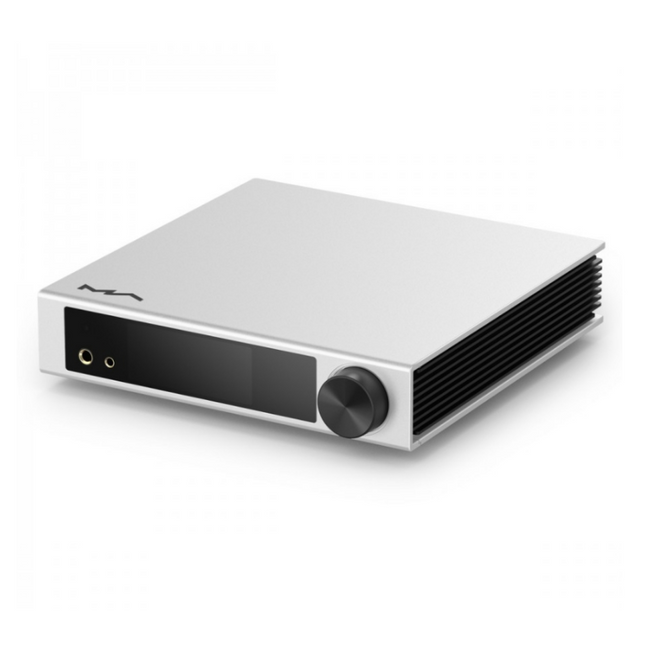

The Matrix Element I2 is part of the brand's line of network players, functioning as a complete standalone source device for your audio system and bringing your traditional HiFi system into the world of high-resolution streaming. With the Element I2, you can enjoy your music in many ways. Whether your files are stored on a device on your local network (computer, NAS...), on a USB storage device or on your smartphone, they are accessible from the Element I2. The streamer also supports DLNA and AirPlay2 streaming protocols as well as Spotify Connect and TIDAL Connect, allowing you to send your music to the I2 directly from a smartphone, for example. Many music streaming services are also accessible from the network player, such as Spotify, TIDAL or Qobuz, but also to a wide range of web radios thanks to vTuner. With the free MA Remote mobile app you can browse your local music files, access your favorite streaming services and web radios, and control playback remotely, right from your smartphone. Firmware updates for the Element I2 can also be managed through the app. The I2 can also be connected in WiFi thanks to the integration of a dual-band antenna 2.4GHz and 5GHz. SPECIFICATIONS Product type Streamer Inputs 1x Coaxial1x Optical1x I2S LVDS via HDMI1x USB-B1x RJ45 Outputs 1x Stereo RCA1x Stereo XLR1x Balanced Jack 4.4mm headphone output1x Single-ended Jack 6.35mm headphone output CPU NXP i.MX 6Quad Cortex-A9 DAC Chip ES9038Q2M Clock Crystek CCHD-950 Supported sampling rates Coaxial / Optical : PCM up to 24bit 192kHz, DSD DoP64I2S LVDS : PCM up to 32bit 768kHz, Native DSD up to DSD512, DSD DoP up to DSD256USB-B : PCM up to 32bit 768kHz, Native DSD up to DSD512, DSD DoP up to DSD256, MQA up to 24bit 384kHz SNR RCA Output : > -118dB A-WeightingXLR Output : > -120dB A-WeightingBalanced Jack 4.4mm headphone output : > -116dB A-WeightingSingle-ended Jack 6.35mm headphone output : > -114dB A-Weighting THD+N RCA Output : < 0.00035% @ 1kHz, < 0.00050% @ 20Hz-20kHzXLR Output : < 0.00025% @ 1kHz, < 0.00035% @ 20Hz-20kHzBalanced Jack 4.4mm headphone output : < 0.0006% @ 20Hz-20kHz 4VrmsSingle-ended Jack 6.35mm headphone output  : < 0.0008% @ 20Hz-20kHz 2Vrms Frequency response RCA Output : 20Hz-20kHz ±0.1 -3dB @ 80kHzXLR Output : 20Hz-20kHz ±0.1 -3dB @ 80kH6Balanced Jack 4.4mm headphone output : 20Hz-20kHZ ±0.1 -3dB @ 65kHzSingle-ended Jack 6.35mm headphone output : 20Hz-20kHz ±0.1 -3dB @ 65kHz Crosstalk RCA Output : > -130dBXLR Output : > -138dB Output level RCA Output : 2Vrms @ 0dBXLR Output : 4Vrms @ 0dB Headphone output impedance Balanced Jack 4.4mm headphone output : < 22ΩSingle-ended Jack 6.35mm headphone output : < 11Ω Headphone output power Balanced Jack 4.4mm headphone output : 1500mW @ 33Ω, 950mW @ 300Ω, 500mW @ 600Ω, 1% THDSingle-ended Jack 6.35mm headphone output  : 1200mW @ 33Ω, 260mW @ 300Ω, 130mW @ 600Ω, 1% THD Headphone output gain +16.5dB Network LAN : 10/100/1000MbpsWLAN : 2.4GHz / 5GHz Control app MA Remote Supported file formats MP3, WMA, WAV, AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF, CUE Supported transmission protocols AirPlay 2DLNA/UPnPTIDAL ConnectSpotify ConnectvTuner

Read more less

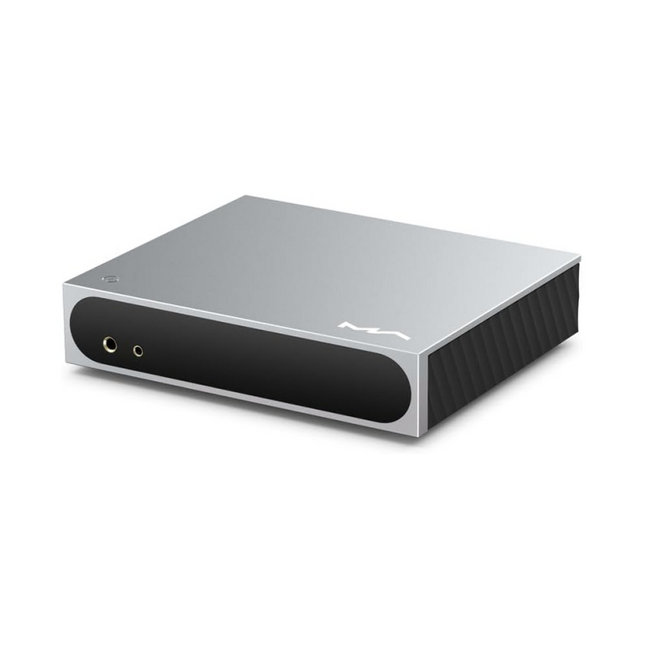

Product Highlights High-quality ES9039Q2M D/A chip Fully balanced amplifier circuit Dual output ports (6.35mm and 4.4mm) 3.46-inch LCD touch screen High-resolution streaming with MA Player MA Remote App for iPhone, iPad, and Android Playback support from USB storage devices and NAS TIDAL, Qobuz, and HIGHRESAUDIO streaming support Internet radio support from vTuner and Radio Paradise High-quality USB DAC HDMI ARC input port S/PDIF optical and coaxial input interfaces RCA analog input with three input gain levels Gigabit Ethernet and dual-band Wi-Fi RM5 remote control with programmable button Specs CPU: Quad Cortex-A55 2.0GHz D/A chip: ES9039Q2M Coaxial & optical:  PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz DSD 2.8MHz (DoP) HDMI ARC: PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz USB audio:  PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz MQA 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz MQA or MQA Studio stream DSD 2.8MHz, 5.6MHz, 11.2MHz (DoP) DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz (Native) Line output XLR SNR: 127dB A-weighting THD+N:<0.00008%@1k, <0.00010%@20Hz-20kHz Frequency Response: 20Hz-20kHz ±0.1 -3dB@90kHz Channel Crosstalk: >-146dB Output Level: 4.4VRMS@0dB Line output RCA SNR: 121dB A-weighting THD+N:<0.00015%@1k, <0.00020%@20Hz-20kHz Frequency Response: 20Hz-20kHz ±0.1 -3dB@90kHz Channel Crosstalk: >-133dB Output Level: 2.2VRMS@0dB 4.4mm headphone output SNR: 117dB A-weighting THD+N:<0.0004%@20Hz-20kHz 4VRMS Frequency Response: 20Hz-20kHz ±0.1 -3dB@90kHz Output Impedance:<22Ω Output Power: 2200mw@33Ω, 950mw@300Ω, 500mw@600Ω, 1%THD Gain: +14dB 6.35mm unbalanced headphone output SNR: 116dB A-weighting THD+N:<0.0005%@20Hz-20kHz 2VRMS Frequency Response: 20Hz-20kHz ±0.1 -3dB@90kHz Output Impedance:<11Ω Output Power: 1200mW@33Ω, 260mW@300Ω, 130mW@600Ω, 1%THD Gain: +14dB Aux input SNR: 100dB A-weighted THD+N: <0.0035%@1k, <0.0035%@20Hz-20kHz Frequency response: <0.0035%@20Hz-20kHz Channel crosstalk: >-105dB Input level: 2.1VRMS Maximum Network LAN: 10/100/1000 Mbps WLAN: 2.4 GHz / 5 GHz USB Type C The USB Type C port provides a maximum power of 5V/1.5A. The USB port works with devices which conform to the USB mass storage standard and supports FAT, FAT32, exFAT and NTFS file formats, but is not guaranteed to be compatible with all storage devices. MA player Controller app: MA remote app Local playback format supported: MP3 , WMA , WAV , AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF, CUE PCM sampling rate:  PCM 16-24Bit 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz MQA  16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz MQA or MQA Studio stream DSD sampling rate: 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz Roon Ready: Under certification test PCM sampling rate:  PCM 16-24 Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz MQA  16-24 Bit /44.1 kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz MQA or MQA Studio stream DSD sampling rate: DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz Power specs Power voltage: AC 100V-240V 50/60Hz Standby power consumption: <5W Maximum power consumption: <30W Weight and size Weight: 2.87 pounds Size: 8.8” width, 7.32” depth, 2.07” height

Read more less

Product highlights Network streaming support with MA player and MA Remote App High-quality sound output with ES9039Q2M D/A chip User-friendly touchscreen interface and optional RM5 remote control High-res local and online music playback Versatile audio input and playback options Gigabit Ethernet for smooth network audio streaming Specs CPU: Quad Cortex-A55 2.0GHz D/A chip: ES9039Q2M COAXIAL & OPTICAL:  PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz DSD 2.8MHz (DoP) HDMI ARC: PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz USB Audio PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz MQA 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz MQA or MQA Studio stream DSD 2.8MHz, 5.6MHz, 11.2MHz (DoP) DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz (Native) Aux input SNR: 100dB A-weighting THD+N: <0.0035%@1k, <0.0035%@20Hz-20kHz Frequency response: 20Hz-20kHz ±0.1 -3dB@46kHz Channel crosstalk: >-105dB Input level: 2.1VRMS Maximum XLR SNR: 127dB A-weighting THD+N:<0.00015%@1k, <0.00018%@20Hz-20kHz Frequency Response: 20Hz-20kHz ±0.1 -3dB@90kHz Channel Crosstalk: >-146dB Output Level: 4.4VRMS@0dB RCA SNR: 121dB A-weighting THD+N:<0.00015%@1k, <0.00030%@20Hz-20kHz Frequency Response: 20Hz-20kHz ±0.1 -3dB@90kHz Channel Crosstalk: >-133dB Output Level: 2.2VRMS@0dB LAN: 10/100/1000 Mbps The USB Type C port provides a maximum power of 5V/1A. The USB Type C port works with devices which conform to the USB mass storage standard and supports FAT, FAT32, exFAT, and NTFS file formats, but is not guaranteed to be compatible with all storage devices. Local playback format supported: MP3 , WMA , WAV , AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF, CUE PCM sampling rate:  PCM 16-24Bit 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz MQA  16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz MQA or MQA Studio stream DSD sampling rate: 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz Roon Ready: Under certification test PCM sampling rate:  PCM 16-24 Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz MQA  16-24 Bit /44.1 kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz MQA or MQA Studio stream DSD sampling rate: DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz Power voltage: AC 100V-240V 50/60Hz Standby power consumption: <5W Maximum power consumption: <20W Weight: 2.87 pounds Size: 8.8” width x 7.32” depth x 2.07” height

Read more less

Transportable CD Player & Digital Audio Player.Premium Dual DAC Chipset.Dual ES9219 DAC Chips.3.5mm & 4.4mm Headphone Output Support.Strong Output With 248mW@32Ω Output Power.Philips CD Drive & Sanya HD860 Laser.MQA-CD Support.Supports Hi-Res Signal Decoding(32-bit/384kHz PCM & Native DSD256).LTA 8092 Pre-Amp Out Chipset.Dual RT6863 Dedicated Headphone Amplifiers.RCA Analog Output Support.Bluetooth V5.0 Connectivity.MicroSD Card, Bi-Directional USB Support.Easy to Access With Touch Screen and Physical Buttons.Independent Battery Power With two 18650 Batteries.

Read more less

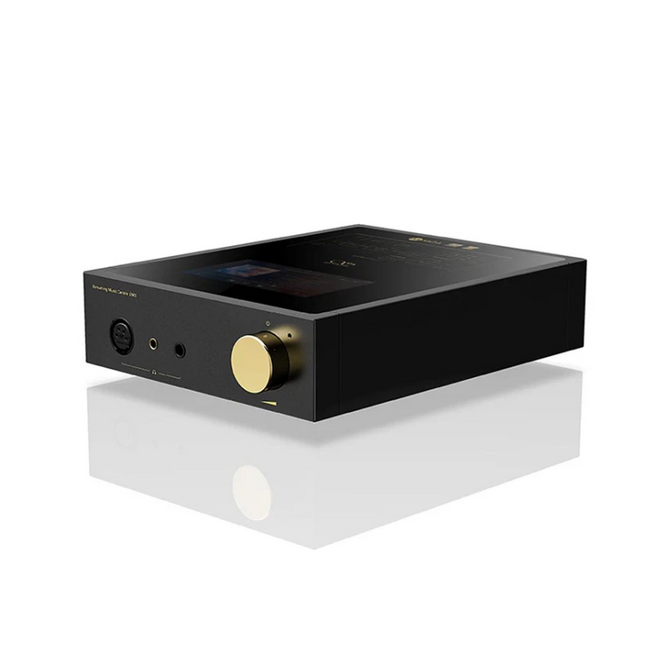

SEPARATED POWER SUPPLY To achieve the ideaL sound performance in such complicated device, we decided to split the power supply between two sections. Analog components are powered by a small and highly efficient toroidal transformer, in combination with high-performing German capacitors, helping to achieve cleaner and smoother sound. SHANLING HOUSE SOUND To provide you with our typical smooth and natural sound, we picked a classic AKM AK4493EQ DAC chip for EM5. Combined with high-quality power supply, Hi-Res playback capabilities and Our 33 years of design experience, you can expect true Hi-Fi sound. 2.4G / 5G DUAL-BAND WI-Fl Enjoy faster transfer speeds, reduced interler ences and smoother streaming with support of the 5G WiFi. STREAM ER OVER BLUETOOTH EMS offers a two-way Btuetooth connectivity, for an easy music streaming from your phone or for the moments when you wouLd Like to use Btuetooth headphones or speakers with it. Transmitter support: LDAC, LHDC, aptx HO, aptx, SBC Receiver support: LDAC, SBC COMPANION APP Our Eddict Player app (available for Android and iOS) allows you to take a complete control over the EM5 from your smartphone or tablet. Offering a complete display mirroring, giving you access to all features of the EM5 from comfort of your chair. BALANCED OUTPUTS Utibzing both 4-pin XLR and 4.4mm jack. EM5 can be used with a vast majority of balanced headphones. And for anything else, there Is still the standard 6.35mm output. Technical Details Headphone Outputs 6.35mm single ended, 4.4mm & 4pin XLR Balanced Pre-amp outputs RCA & XLR Outputs Digital input USB, Coaxial, optical, LAN and external driver USB slot Digital output Coaxial & Optical Output power Single ended 6.35mm – 540mW @ 32OhmBalanced – 1620mW @ 32Ohm Wireless connection Wifi 2.4 & 5GSupport DLNA and AIrplayTwo-way Bluetooth 4.2, with LDAC support Audio support PCM 32/384DSD256 native, DSD512 software8x MQA

Read more less

Specification Dimensions: 252 x 188 x 67.5 mm Weight: 3.2kg Display: 5.8-inch 1920*1080 IPS Touch screen System: Based on Android 10, Closed and Customized Hi-Res Support: Up to PCM 32bit / 768 kHz & DSD512 Bluetooth: Version 5.0, serving as both Receiver and transmitter BT codec support:  Receiver LDAC & SBC // Transmitter LDAC, aptX-HD, aptX, SBC Wi-Fi: Dual band 2.4G & 5G DAC: ESS ES9038Pro Analog Section: OPA1611 based I/V conversion, OPA2211 based LPF, OPA2211+BD139+BD140 based Amplifier Analog outputs: 4.4mm & XLR balanced, 3.5mm & 6.35mm Single-ended, with pair of RCA and XLR Digital outputs: SPDIF Coaxial & Optical, USB Audio Output Digital inputs: USB-B, Coaxial SPDIF & Optical, 2x USB port for USB drives, MicroSD card slot Output power Single Ended: Up to 8.5V / 2.3W @ 32 Ohm // 9V / 270mW @ 300 Ohm Output power Balanced: Up to 15V / 7W @ 32 Ohm // 18V / 1W @ 300 Ohm Output Impedance: 1.2 Ohm SE // 2.4 Ohm BAL Balanced THD+N: 0.0003% Balanced Dynamic Range: 125 dB Balanced SNR: 125 dB Balanced Channel separation: 104dB

Read more less

Multifunctional digital interface with support for USB, AES/EBU and HD Bluetooth inputs ; P.A.S.S. (Precision Access Servo System), natively supports MQA-CD ; Clock inputs and outputs, supporting 44.1kHz word clock and 10MHz standard or atomic clock ; USB support up to 32bit/768kHz, DSD512, support MQA full decoding ; The AES/EBU input supports full MQA decoding, making it possible to use it as a standalone MQA decoder ! Uses two pieces of low-phase noise, high precision femtosecond local crystal oscillators ; Selectable 50Ω or 75Ω clock input matching impedance ; Built-in CLOCK ALIGNMENT processor for CD sound reconstruction . Built-in dual toroidal power transformers, And multiple sets of linear power supplies ; Qualcomm high-end Bluetooth chip, support LDAC (24bit/96kHz), APTX/HD, SBC, AAC ; With optical, coaxial, I 2 S and two independent AES/EBU outputs ; Using a tempered glass fully laminated IPS display and a newly developed UI ; Support DOP and bit display function, making it easy to identify the current audio source format ;
