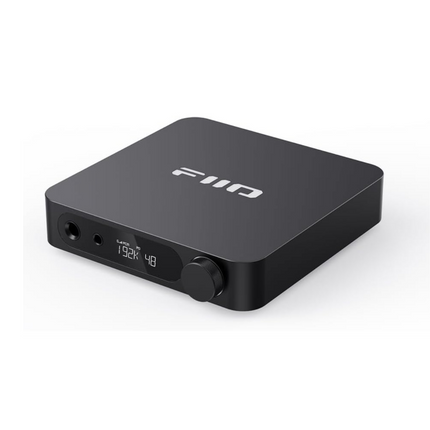

FiiO K11 Desktop USB DAC and Headphone Amplifier

Description

Wide Variety of Inputs and Outputs

  • USB (USB connection to phones for decoding does not consume the phones battery)
  • Optical input
  • Coaxial input and output (Coaxial share same physical connector. Coaxial output can only be used in USB Mode)

1400mW Power Output

Under a 32-ohm load, the K11 is capable of pushing 1400mW under balance modes. This allows it to easily drive many hi-fi earphones and headphones to fully unlock their potential.

Gain Levels and Volume Curves

The K11 has three separate gain levels, each with its own volume curve. This provides a better listening experience with various types of headphones, whether you are using sensitive earphones or hard-to-drive over-ear headphones.
Specially-Designed Audio Circuit and Power Supply
Within the K11's slim build lies a special audio circuit designed for great sound quality. This is backed by more than 16 low-noise LDOs for precise voltage stabilization and powered by an external 12V switching power supply. All of this leads to a purer and more robust supply of power, leading to stable high-quality audio and truly enjoyable music, all of the time.

Slim and Stable Enclosure

The slim aluminum alloy body allows you to easily place the K11 anywhere, making it easier to complement the rest of your desk. Thanks to the silicone antislip pad, the K11 rests stably and firmly on your table.
High-Contrast Display
A custom, high-contrast display and durable VA display allows you to easily see the sampling rate, volume, gain, or output mode with just a glance.
Adjustable RGB Logo Lighting
FiiO logo is illuminated with RGB lighting, giving you a quick way to identify the sampling rate of the current audio being played back. Six LED strips work in conjunction with a carefully placed reflective film and parts of the body designed to reflect light to make the light show uniform and elegant.

Single Knob Interface

  • In the K11's minimalist design, the volume knob acts as a crucial source of total control. The K11's multifunction volume knob is used to power the device on and off, accessing menu operations, making volume adjustment, and other functions.
  • The knob is designed so that you can quickly execute various complex actions by simply pressing and turning the knob. You can also quickly switch between LO/PO modes by double-pressing the knob, making it easier for you to appropriately connect to different headphones or audio setups.

Driver-Free Mode

The K11 used in USB DAC mode does not require a driver on Widows 10 and above and can also be used with video game consoles such as PS5 and the Switch. Simply plug and play for worry-free usage, whether you are enjoying music or being immersed in games.

Specs

  • Main control chip (single-chip microcomputer): GD32F303RET6
  • DAC: CS43198
  • Supported audio formats: 384kHz/32bit PCM, DSD256
  • USB connector: Type-C
  • Display type: Custom VA
  • Dimensions: 147×133×32.3mm (including feet)
  • Weight: About 407g
  • Power supply: DC12V 2A external adapter
  • SE power output 1: L+R≥520mW +520mW (32Ω, THD+N <1%)
  • (32Ω/single-ended/high gain)
  • SE power output 2: L+R≥60mW+60mW (300Ω, THD+N <1%)
  • (300Ω/single-ended/high gain)
  • BAL power output 1: L+R≥1400mW+ 1400mW (32Ω, THD+N<1%)
  • (32Ω/balanced /high gain)
  • BAL power output 2: L+R≥250mW+250mW (300Ω, THD+N < 1%)
  • (300Ω/ balanced/high gain)
  • Frequency response: 20Hz~50kHz (Attenuation <0.2dB)
  • SNR: ≥123dB (A-weighted)
  • Noise floor: PO < 2.8uV (A-weighted); BAL < 4.9uV (A-weighted)
  • Output impedance: PO < 1.2Ω (32Ω load); BAL < 2.41Ω (32Ω load)
  • THD+N: LO < 0.00035% (1kHz/10kΩ)
Product form

Wide Variety of Inputs and Outputs USB (USB connection to phones for decoding does not consume the phones battery) Optical... Read more

$129.99 Excl. VAT

      Description

      Wide Variety of Inputs and Outputs

      • USB (USB connection to phones for decoding does not consume the phones battery)
      • Optical input
      • Coaxial input and output (Coaxial share same physical connector. Coaxial output can only be used in USB Mode)

      1400mW Power Output

      Under a 32-ohm load, the K11 is capable of pushing 1400mW under balance modes. This allows it to easily drive many hi-fi earphones and headphones to fully unlock their potential.

      Gain Levels and Volume Curves

      The K11 has three separate gain levels, each with its own volume curve. This provides a better listening experience with various types of headphones, whether you are using sensitive earphones or hard-to-drive over-ear headphones.
      Specially-Designed Audio Circuit and Power Supply
      Within the K11's slim build lies a special audio circuit designed for great sound quality. This is backed by more than 16 low-noise LDOs for precise voltage stabilization and powered by an external 12V switching power supply. All of this leads to a purer and more robust supply of power, leading to stable high-quality audio and truly enjoyable music, all of the time.

      Slim and Stable Enclosure

      The slim aluminum alloy body allows you to easily place the K11 anywhere, making it easier to complement the rest of your desk. Thanks to the silicone antislip pad, the K11 rests stably and firmly on your table.
      High-Contrast Display
      A custom, high-contrast display and durable VA display allows you to easily see the sampling rate, volume, gain, or output mode with just a glance.
      Adjustable RGB Logo Lighting
      FiiO logo is illuminated with RGB lighting, giving you a quick way to identify the sampling rate of the current audio being played back. Six LED strips work in conjunction with a carefully placed reflective film and parts of the body designed to reflect light to make the light show uniform and elegant.

      Single Knob Interface

      • In the K11's minimalist design, the volume knob acts as a crucial source of total control. The K11's multifunction volume knob is used to power the device on and off, accessing menu operations, making volume adjustment, and other functions.
      • The knob is designed so that you can quickly execute various complex actions by simply pressing and turning the knob. You can also quickly switch between LO/PO modes by double-pressing the knob, making it easier for you to appropriately connect to different headphones or audio setups.

      Driver-Free Mode

      The K11 used in USB DAC mode does not require a driver on Widows 10 and above and can also be used with video game consoles such as PS5 and the Switch. Simply plug and play for worry-free usage, whether you are enjoying music or being immersed in games.

      Specs

      • Main control chip (single-chip microcomputer): GD32F303RET6
      • DAC: CS43198
      • Supported audio formats: 384kHz/32bit PCM, DSD256
      • USB connector: Type-C
      • Display type: Custom VA
      • Dimensions: 147×133×32.3mm (including feet)
      • Weight: About 407g
      • Power supply: DC12V 2A external adapter
      • SE power output 1: L+R≥520mW +520mW (32Ω, THD+N <1%)
      • (32Ω/single-ended/high gain)
      • SE power output 2: L+R≥60mW+60mW (300Ω, THD+N <1%)
      • (300Ω/single-ended/high gain)
      • BAL power output 1: L+R≥1400mW+ 1400mW (32Ω, THD+N<1%)
      • (32Ω/balanced /high gain)
      • BAL power output 2: L+R≥250mW+250mW (300Ω, THD+N < 1%)
      • (300Ω/ balanced/high gain)
      • Frequency response: 20Hz~50kHz (Attenuation <0.2dB)
      • SNR: ≥123dB (A-weighted)
      • Noise floor: PO < 2.8uV (A-weighted); BAL < 4.9uV (A-weighted)
      • Output impedance: PO < 1.2Ω (32Ω load); BAL < 2.41Ω (32Ω load)
      • THD+N: LO < 0.00035% (1kHz/10kΩ)
