Description
W2U "The Extraordinary"

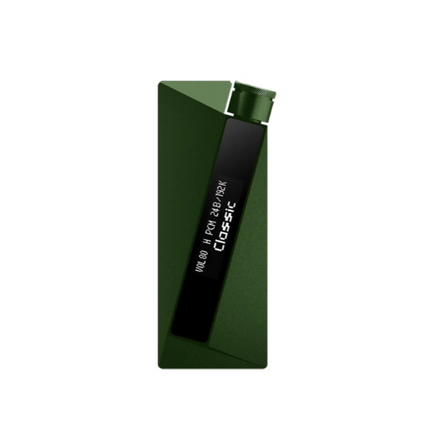

800mW+800mW Continuous High Power Output! L&P's New High-Power Dongle W2 Ultra.
Basic parameters
Product model：W2 Ultra
Color/Size/Weight：GREEN/63x24x12.5mm/26g
Display：0.91 inches monochrome OLED
Packages list：Manual x1/warranty card x1/C-C cable x1/TYPEA-C adapterx1
SNR：3.5mm: 129db(A Weighting)，4.4mm: 133db(A Weighting)
Dynamic Range：3.5mm: 129db(A Weighting)，4.4mm: 133db(A Weighting)
THD+N：3.5.mm:0.00048%@32Ω，4.4mm:0.00012%@300Ω
Output power：3.5mm:216mW@32Ω，4.4mm:800mW@32Ω
Output voltage：3.5mm: 2.65Vrms，4.4mm:5.3V
DAC：CS43131x2
Input ports：Type-C USB female
Output ports：3.5mm SE (PO, SPDIF) 4.4mm balanced
Sampling Rate PCM：16/24/32bit 44.1KHz-384KHz
Sampling Rate DSD：Native DSD64/Native DSD128/Native DSD256
Supported systems：1OS/OS/Android/Windows/linux
Function Parameter
EQ：Normal/CLASS/JAZZ/ROCK/POP/BASS/MOVIE/GAME
SDF Tone tuning：NORMAL/IER-M9/IER-Z1R/SE846/IE800S/Xelento
/IE600/IE900/Traillii Ti/N500S/HD800/Utopia
Gain：HIGH/LOW
Digital Filter：FAST/SLOW/NOS/LL FAST/LL SLOW
HID Key：Supported
SPDIF output：Supported
Firmware upgrade：Supported
LP TUNE：TUNE 01/TUNE02
PA voltage adjust：±4.5V/±6V
