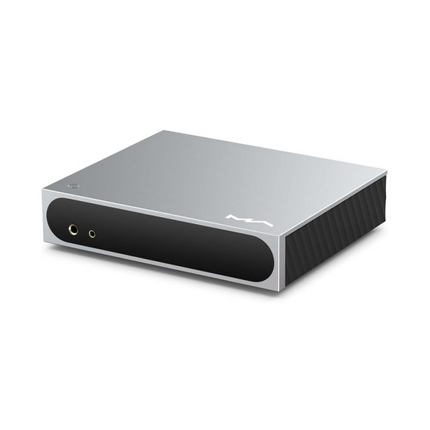

Matrix Mini-I PRO 4 Music Streamer ES9039Q2M Decoder with Touch Screen MA Player USB DAC

Description

Product Highlights

  • High-quality ES9039Q2M D/A chip
  • Fully balanced amplifier circuit
  • Dual output ports (6.35mm and 4.4mm)
  • 3.46-inch LCD touch screen
  • High-resolution streaming with MA Player
  • MA Remote App for iPhone, iPad, and Android
  • Playback support from USB storage devices and NAS
  • TIDAL, Qobuz, and HIGHRESAUDIO streaming support
  • Internet radio support from vTuner and Radio Paradise
  • High-quality USB DAC
  • HDMI ARC input port
  • S/PDIF optical and coaxial input interfaces
  • RCA analog input with three input gain levels
  • Gigabit Ethernet and dual-band Wi-Fi
  • RM5 remote control with programmable button

Specs

  • CPU: Quad Cortex-A55 2.0GHz
  • D/A chip: ES9039Q2M
  • Coaxial & optical:
    • PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
    • DSD 2.8MHz (DoP)
  • HDMI ARC: PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
  • USB audio:
    • PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
    • MQA 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz MQA or MQA Studio stream
    • DSD 2.8MHz, 5.6MHz, 11.2MHz (DoP)
    • DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz (Native)
  • Line output XLR
    • SNR: 127dB A-weighting
    • THD+N:<0.00008%@1k, <0.00010%@20Hz-20kHz
    • Frequency Response: 20Hz-20kHz ±0.1 -3dB@90kHz
    • Channel Crosstalk: >-146dB
    • Output Level: 4.4VRMS@0dB
  • Line output RCA
    • SNR: 121dB A-weighting
    • THD+N:<0.00015%@1k, <0.00020%@20Hz-20kHz
    • Frequency Response: 20Hz-20kHz ±0.1 -3dB@90kHz
    • Channel Crosstalk: >-133dB
    • Output Level: 2.2VRMS@0dB
  • 4.4mm headphone output
    • SNR: 117dB A-weighting
    • THD+N:<0.0004%@20Hz-20kHz 4VRMS
    • Frequency Response: 20Hz-20kHz ±0.1 -3dB@90kHz
    • Output Impedance:<22Ω
    • Output Power: 2200mw@33Ω, 950mw@300Ω, 500mw@600Ω, 1%THD
    • Gain: +14dB
  • 6.35mm unbalanced headphone output
    • SNR: 116dB A-weighting
    • THD+N:<0.0005%@20Hz-20kHz 2VRMS
    • Frequency Response: 20Hz-20kHz ±0.1 -3dB@90kHz
    • Output Impedance:<11Ω
    • Output Power: 1200mW@33Ω, 260mW@300Ω, 130mW@600Ω, 1%THD
    • Gain: +14dB
  • Aux input
    • SNR: 100dB A-weighted
    • THD+N: <0.0035%@1k, <0.0035%@20Hz-20kHz
    • Frequency response: <0.0035%@20Hz-20kHz
    • Channel crosstalk: >-105dB
    • Input level: 2.1VRMS Maximum
  • Network
    • LAN: 10/100/1000 Mbps
    • WLAN: 2.4 GHz / 5 GHz
  • USB Type C
    • The USB Type C port provides a maximum power of 5V/1.5A.
    • The USB port works with devices which conform to the USB mass storage standard and supports FAT, FAT32, exFAT and NTFS file formats, but is not guaranteed to be compatible with all storage devices.
  • MA player
    • Controller app: MA remote app
    • Local playback format supported: MP3 , WMA , WAV , AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF, CUE
    • PCM sampling rate:
      • PCM 16-24Bit 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
      • MQA  16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz MQA or MQA Studio stream
    • DSD sampling rate: 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz
    • Roon Ready: Under certification test
    • PCM sampling rate:
      • PCM 16-24 Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
      • MQA  16-24 Bit /44.1 kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz MQA or MQA Studio stream
    • DSD sampling rate: DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz
  • Power specs
    • Power voltage: AC 100V-240V 50/60Hz
    • Standby power consumption: <5W
    • Maximum power consumption: <30W
  • Weight and size
    • Weight: 2.87 pounds
    • Size: 8.8” width, 7.32” depth, 2.07” height
Product form

Product Highlights High-quality ES9039Q2M D/A chip Fully balanced amplifier circuit Dual output ports (6.35mm and 4.4mm) 3.46-inch LCD touch screen... Read more

$959.00 Excl. VAT

      Description

      Product Highlights

      • High-quality ES9039Q2M D/A chip
      • Fully balanced amplifier circuit
      • Dual output ports (6.35mm and 4.4mm)
      • 3.46-inch LCD touch screen
      • High-resolution streaming with MA Player
      • MA Remote App for iPhone, iPad, and Android
      • Playback support from USB storage devices and NAS
      • TIDAL, Qobuz, and HIGHRESAUDIO streaming support
      • Internet radio support from vTuner and Radio Paradise
      • High-quality USB DAC
      • HDMI ARC input port
      • S/PDIF optical and coaxial input interfaces
      • RCA analog input with three input gain levels
      • Gigabit Ethernet and dual-band Wi-Fi
      • RM5 remote control with programmable button

      Specs

      • CPU: Quad Cortex-A55 2.0GHz
      • D/A chip: ES9039Q2M
      • Coaxial & optical:
        • PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
        • DSD 2.8MHz (DoP)
      • HDMI ARC: PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
      • USB audio:
        • PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
        • MQA 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz MQA or MQA Studio stream
        • DSD 2.8MHz, 5.6MHz, 11.2MHz (DoP)
        • DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz (Native)
      • Line output XLR
        • SNR: 127dB A-weighting
        • THD+N:<0.00008%@1k, <0.00010%@20Hz-20kHz
        • Frequency Response: 20Hz-20kHz ±0.1 -3dB@90kHz
        • Channel Crosstalk: >-146dB
        • Output Level: 4.4VRMS@0dB
      • Line output RCA
        • SNR: 121dB A-weighting
        • THD+N:<0.00015%@1k, <0.00020%@20Hz-20kHz
        • Frequency Response: 20Hz-20kHz ±0.1 -3dB@90kHz
        • Channel Crosstalk: >-133dB
        • Output Level: 2.2VRMS@0dB
      • 4.4mm headphone output
        • SNR: 117dB A-weighting
        • THD+N:<0.0004%@20Hz-20kHz 4VRMS
        • Frequency Response: 20Hz-20kHz ±0.1 -3dB@90kHz
        • Output Impedance:<22Ω
        • Output Power: 2200mw@33Ω, 950mw@300Ω, 500mw@600Ω, 1%THD
        • Gain: +14dB
      • 6.35mm unbalanced headphone output
        • SNR: 116dB A-weighting
        • THD+N:<0.0005%@20Hz-20kHz 2VRMS
        • Frequency Response: 20Hz-20kHz ±0.1 -3dB@90kHz
        • Output Impedance:<11Ω
        • Output Power: 1200mW@33Ω, 260mW@300Ω, 130mW@600Ω, 1%THD
        • Gain: +14dB
      • Aux input
        • SNR: 100dB A-weighted
        • THD+N: <0.0035%@1k, <0.0035%@20Hz-20kHz
        • Frequency response: <0.0035%@20Hz-20kHz
        • Channel crosstalk: >-105dB
        • Input level: 2.1VRMS Maximum
      • Network
        • LAN: 10/100/1000 Mbps
        • WLAN: 2.4 GHz / 5 GHz
      • USB Type C
        • The USB Type C port provides a maximum power of 5V/1.5A.
        • The USB port works with devices which conform to the USB mass storage standard and supports FAT, FAT32, exFAT and NTFS file formats, but is not guaranteed to be compatible with all storage devices.
      • MA player
        • Controller app: MA remote app
        • Local playback format supported: MP3 , WMA , WAV , AIF, AIFC, AIFF, AAC, FLAC, OGG, APE, ALAC, M4A, DSF, DFF, CUE
        • PCM sampling rate:
          • PCM 16-24Bit 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
          • MQA  16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz MQA or MQA Studio stream
        • DSD sampling rate: 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz
        • Roon Ready: Under certification test
        • PCM sampling rate:
          • PCM 16-24 Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz
          • MQA  16-24 Bit /44.1 kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz MQA or MQA Studio stream
        • DSD sampling rate: DSD 2.8MHz, 5.6MHz, 11.2MHz, 22.4MHz
      • Power specs
        • Power voltage: AC 100V-240V 50/60Hz
        • Standby power consumption: <5W
        • Maximum power consumption: <30W
      • Weight and size
        • Weight: 2.87 pounds
        • Size: 8.8” width, 7.32” depth, 2.07” height
