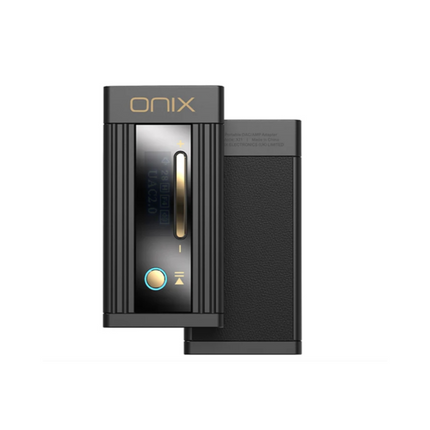

ONIX Alpha XI1 Dual CS43198 Portable USB DAC/AMP

Description

Excellent Sound in Smallest Package

Pair of top-of-the-line Cirrus Logic CS43198 DACs provide exquisitely clean sound, while still providing our unique sound tuning. Running in a fully balanced setup, feeding two dedicated SGM8262 headphone amplifiers, offering up to 500 mW @ 32 Ohm output power. Making ONIX XI1 into a truly powerful tiny beast, driving anything from sensitive IEMs to demanding full-size Planars.

Advanced Control

ONIX XI1 offers a 0.87-inch monochromatic screen for quick access to a range of settings directly on the device, without any need to dive into a companion app and compatible with an unlimited range of systems. A trio of hardware buttons then provide quick and tactile control over volume and playback.

SPECIFICATIONS

Dimensions: 64 x 32 x14 mm
Weight: 38g
Hi-Res Support: 32bit / 768kHz & DSD256
Gain: Low & High Gain
Display: 0.87-Inch Monochromatic
Controls: 3 Hardware Multifunctional Buttons
Input: Standard USB-C Connector
Compatibility: Android & iOS Devices, Windows & Mac Computers
* For devices using Lightning Connector, please purchase Shanling L3 cable

3.5mm Single-Ended Output:
Output Power: 2.4V@32Ω (180mW@32Ω)
Output Impedance: 0.4Ω

4.4mm Balanced Output:
Output Power: 4.0V@32Ω (500mW@32Ω)
THD+N: 0.0005% @32Ω (A-Weight)
Dynamic Range: 129dB @32Ω (A-Weight)
Channel Separation: 99dB
Signal-to-Noise Ratio : 129dB @32Ω (A-Weight)
Output Impedance: 0.8Ω

Product form

Excellent Sound in Smallest PackagePair of top-of-the-line Cirrus Logic CS43198 DACs provide exquisitely clean sound, while still providing our unique... Read more

$109.00 Excl. VAT

    • Shipped today? Order within: Jan 22, 2025 17:00:00 -0500

    Description

    Excellent Sound in Smallest Package

    Pair of top-of-the-line Cirrus Logic CS43198 DACs provide exquisitely clean sound, while still providing our unique sound tuning. Running in a fully balanced setup, feeding two dedicated SGM8262 headphone amplifiers, offering up to 500 mW @ 32 Ohm output power. Making ONIX XI1 into a truly powerful tiny beast, driving anything from sensitive IEMs to demanding full-size Planars.

    Advanced Control

    ONIX XI1 offers a 0.87-inch monochromatic screen for quick access to a range of settings directly on the device, without any need to dive into a companion app and compatible with an unlimited range of systems. A trio of hardware buttons then provide quick and tactile control over volume and playback.

    SPECIFICATIONS

    Dimensions: 64 x 32 x14 mm
    Weight: 38g
    Hi-Res Support: 32bit / 768kHz & DSD256
    Gain: Low & High Gain
    Display: 0.87-Inch Monochromatic
    Controls: 3 Hardware Multifunctional Buttons
    Input: Standard USB-C Connector
    Compatibility: Android & iOS Devices, Windows & Mac Computers
    * For devices using Lightning Connector, please purchase Shanling L3 cable

    3.5mm Single-Ended Output:
    Output Power: 2.4V@32Ω (180mW@32Ω)
    Output Impedance: 0.4Ω

    4.4mm Balanced Output:
    Output Power: 4.0V@32Ω (500mW@32Ω)
    THD+N: 0.0005% @32Ω (A-Weight)
    Dynamic Range: 129dB @32Ω (A-Weight)
    Channel Separation: 99dB
    Signal-to-Noise Ratio : 129dB @32Ω (A-Weight)
    Output Impedance: 0.8Ω
