Description
【Fully Balanced R2R DAC for Superior Audio】
【Customizable Listening Modes】
【10-Band PEQ Adjustment for Precision】
【Wireless LDAC Bluetooth Connectivity】
【Aurora UI with Touch Interface】
【Ultra-Low Jitter Performance】
【Plug-and-Play USB Compatibility】
【Flexible Output Options for Versatile Setups】
Product highlights
-
Fully-balanced 8-channel R2R architecture
-
Three sampling modes: NOS, OS, Best
-
Aurora UI with customizable features
-
10-band high-precision PEQ adjustment
-
Bluetooth 5.1 with LDAC and aptX support
-
Wide compatibility across platforms
-
THD+N < 0.0005%, SNR 130dB
-
IIS input for ultra-high-spec signals
-

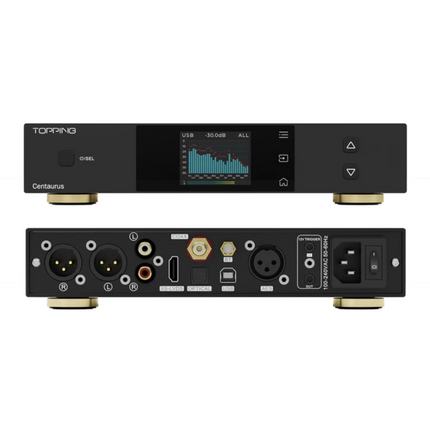

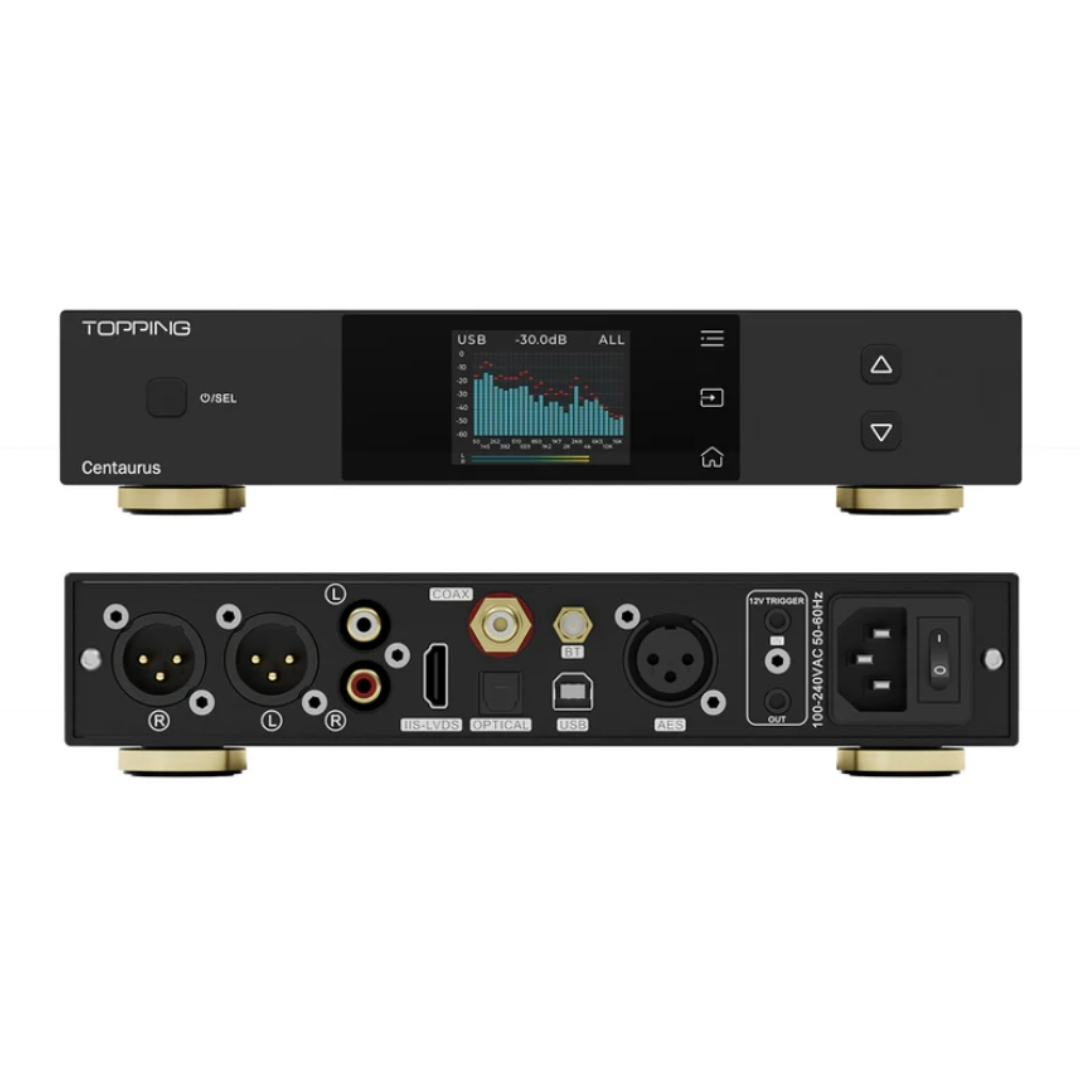

RCA and XLR outputs with adjustable voltage levels
-
Preamp mode for active speaker connections
-
12V Trigger for synchronized power control
Specs
Centaurus DAC parameters (LineOut/USB In@96kHz):
-
RCA:
-
THD+N @A-wt: <0.0005% @1kHz
-
THD @No-wt 90kBw: <0.0005% @20-20kHz
-
SNR @A-wt: 126dB @1kHz
-
Dynamic Range @A-wt: 126dB @1kHz
-
Frequency Response:
-
20Hz-20kHz (+0.6dB)
-
20Hz-40kHz (+2.2dB)
-
Output Level:
-
2.1Vrms @0dBFS (4V Mode)
-
2.6Vrms @0dBFS (5V Mode)
-
Noise @A-wt: <1.2uVrms
-
Channel Crosstalk: -121dB @1kHz
-
Channel Balance: 0.3dB
-
Output Impedance: 50Ω
-
XLR:
-
THD+N @A-wt: <0.0005% @1kHz
-
THD @No-wt 90kBw: <0.0005% @20-20kHz
-
SNR @A-wt: 130dB @1kHz
-
Dynamic Range @A-wt: 130dB @1kHz
-
Frequency Response:
-
20Hz-20kHz (+0.6dB)
-
20Hz-40kHz (+2.2dB)
-
Output Level:
-
4.2Vrms @0dBFS (4V Mode)
-
5.2Vrms @0dBFS (5V Mode)
-
Noise @A-wt: <1.4uVrms
-
Channel Crosstalk: -130dB @1kHz
-
Channel Balance: 0.3dB
-
Output Impedance: 100Ω
What is included
-

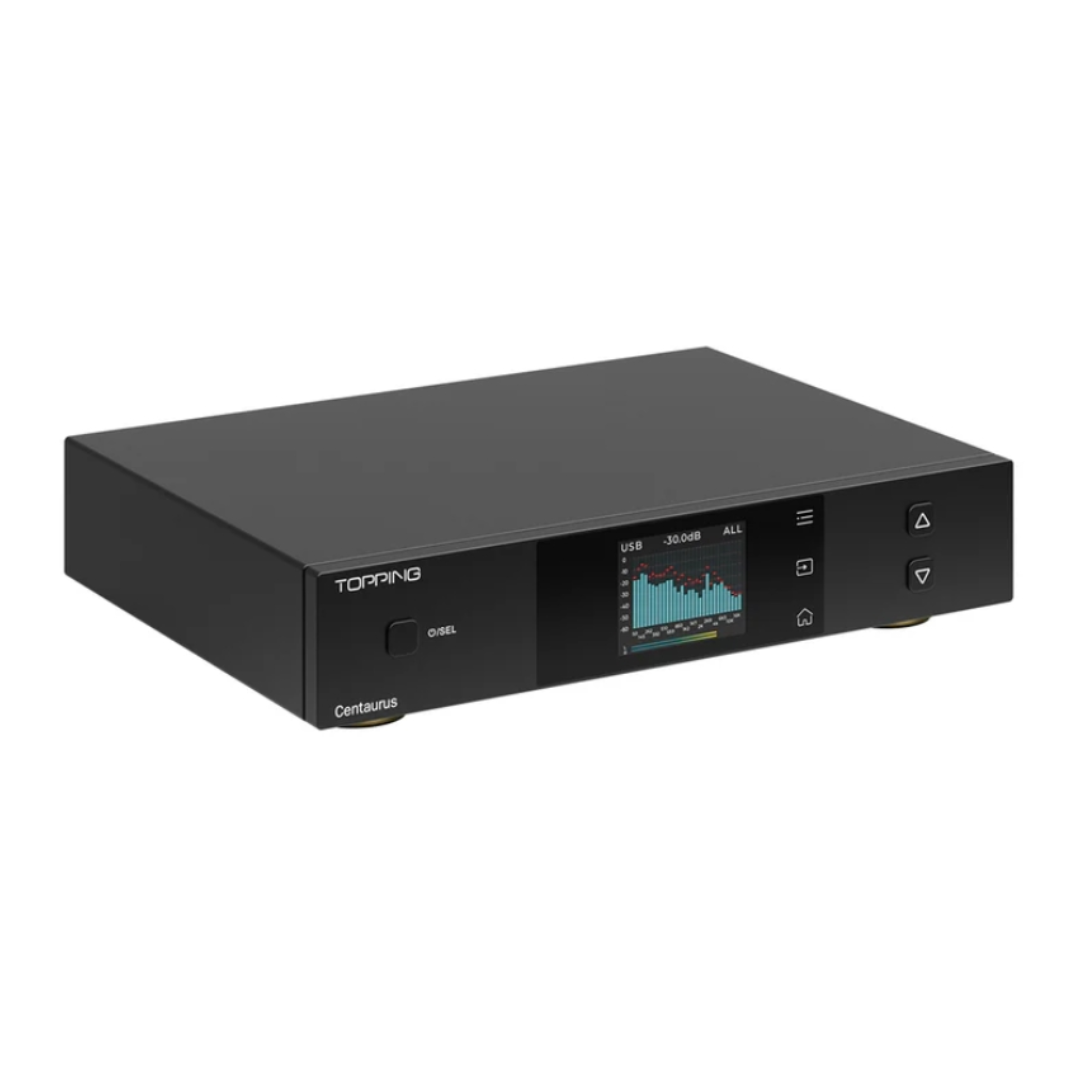

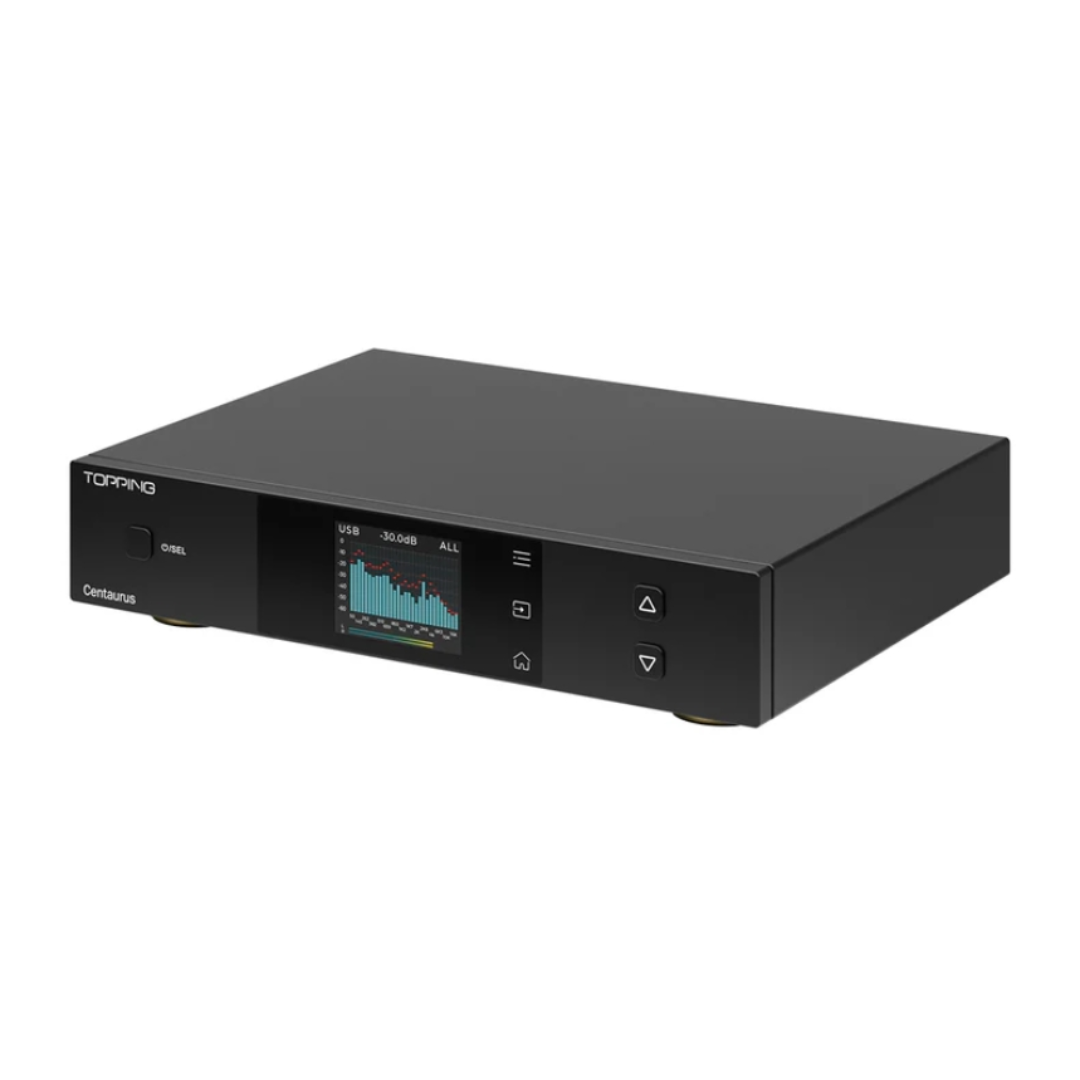

TOPPING Centaurus DAC
-
Remote control
-
USB cable
-
AC cable
-
Bluetooth antenna
-
Product Information Card
