Description
The Topping D90SE redefines high-end DAC performance with its ESS ES9038Pro chip, enabling unparalleled audio precision. Its innovative design utilizes independent I/V conversion for each channel, delivering outstanding audio fidelity. With support for MQA across a variety of inputs including USB, Coaxial, Optical and AES, music playback is assured to be faithful to the original. Additionally, support for Bluetooth 5.0, aptX, aptX HD, aptX LL and LDAC ensure high-quality wireless streaming. The USB input uses a 2nd generation XMOS XU2013 chip for seamless compatibility up to 32-bit 768kHz PCM and DSD512, supported by a custom Thesycon driver, making the D90SE a top choice for audiophiles.
Features:
Flagship ES9038Pro DAC Chip.
Hi-Res Audio & Hi-Res Audio Wireless Certified.
Flagship-Grade Performance With Ultra-Low Distortion.
2nd Generation 16-Core XMOS XU216 USB Signal Receiver.
PCM Decoding up to 32-Bit/768kHz.
Native DSD512 Decoding.
IIS Input Supports Native DSD1024 Support.
MQA Decoding Support across USB, Coaxial, Optical, and AES Inputs.
High-Resolution Bluetooth V5.0 Connectivity With LDAC Transmission Codec.
RCA & XLR Output Support.
Ultra-Low Noise Pre-Amp Function.
Fully Operational Remote Control.

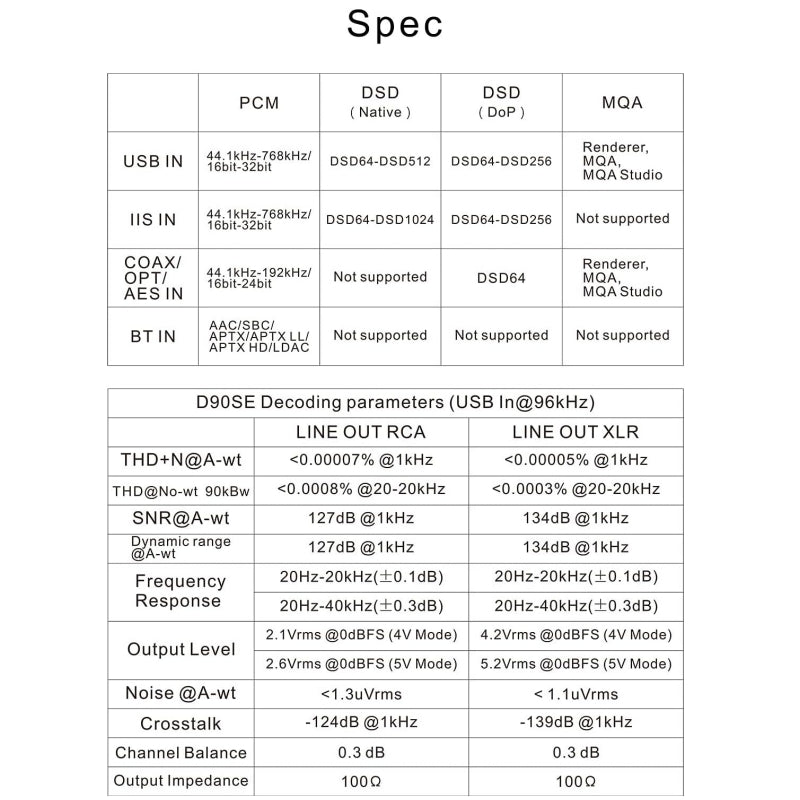

Output Parameters(RCA):
THD+N(A-Weighted): <0.00007%@1kHz.
THD+N(No-Weight): <0.0008%@20Hz-20kHz.
SNR: 127dB.
Dynamic Range: 127dB.
Frequency Response: 20Hz-40kHz(+/-0.3dB).
Output Level: 2.1Vrms@0dBFS(4V Mode), 2.6Vrms@0dBFS(5V Mode).
Noise: <1.3uVrms.
Crosstalk: -124dB@1kHz.
Channel Balance: 0.3dB.
Output Impedance: 100 ohms.
Ouptut Parameters(XLR):
THD+N(A-Weighted): <0.00005%@1kHz.
THD+N(No-Weight): <0.0003%@20Hz-20kHz.
SNR: 134dB.
Dynamic Range: 134dB.
Frequency Response: 20Hz-40kHz(+/-0.3dB).
Output Level: 4.2Vrms@0dBFS(4V Mode), 5.2Vrms@0dBFS(5V Mode).
Noise: <1.1uVrms.
Crosstalk: -139dB@1kHz.
Channel Balance: 0.3dB.
Output Impedance: 100 ohms.
Meet the all-new flagship Balanced Desktop DAC, the Topping D90SE. Topping has carefully implemented an advanced ES9038Pro 32-Bit DAC chip that is paired with a 16-core XMOS XU216 USB signal receiver chip for high-resolution audio decoding. The D90SE supports full MQA decoding as well as PCM 768kHz and native DSD512 decoding.
Flagship DAC, Flagship Performance:
Topping D90SE is a flagship-grade desktop DAC capable of providing unmatched performance with its high-quality audiophile-grade components. It achieves industry-leading performance with an ultra-low-distortion rating of <0.00005%. It brings the true details out of our music with great clarity and precision.
Flagship-Grade Sabre DAC Chip:
Topping has equipped the D90SE with a powerful ES9038Pro flagship-grade DAC chip from Sabre Technologies. It helps the D90SE decode the high-resolution audio signals with ultimate quality and performance achieving industry-leading distortion and SNR ratings.
High-Resolution Signal Decoding With XMOS USB Processor:
Topping D90SE adopts a 2nd-gen XMOS XU216 16-core USB processor chip that enables high-resolution audio signal decoding. It provides supports for decoding PCM signal up to 32-Bit/768kHz and DSD up to DSD512 natively. Apart from these, Topping D90SE also supports full MQA unfolding bringing the latest MQA Technology high-end users worldwide. MQA decoding is supported via USB, AES, Optical, and Coaxial input options.
High-Resolution Bluetooth Connectivity:
Topping D90SE adopts Qualcomm's latest CSR8675 Bluetooth chip that provides seamless Bluetooth V5.0 connectivity. It supports multiple high-resolution wireless codecs including LDAC, AptX HD, AptX LL, AptX, SBC, and AAC.
Balanced & Single-Ended Selectable Output Options:
D90SE features balanced XLR and single-ended RCA output ports. Users get the option to choose between different output options such as, "XLR Only", "RCA Only", or "XLR+RCA". Output option can also be chosen between 4V and 5V for XLR output and 2V and 2.5V for the RCA output option.
