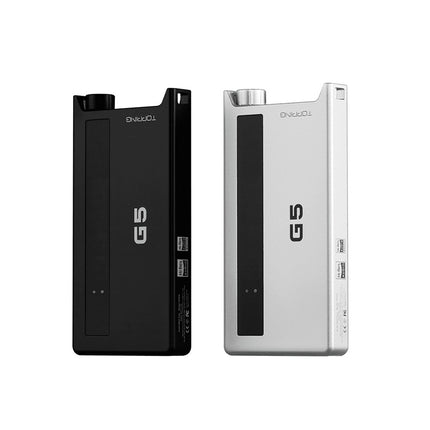

TOPPING G5 ES9068AS Portable USB DAC/AMP

Description

Portability meets performance

The TOPPING G5 is a DAC/Amp that packs TOPPING’s classic NFCA architecture into a portable package. With 24-bit Bluetooth audio and top-of-the-line specs, it’s an ideal unit for audiophiles and enthusiasts alike.



Built-in NFCA headphone amp

The G5 uses an NFCA module specially developed for portable devices. It achieves an output power of 1200mW x 2, THD+N of 0.00007%, and an output impedance of <0.1Ω.

24bit hi-def Bluetooth

The G5 is certified Hi-Res Audio Wireless. It uses the newest Qualcomm QCC5125 chipset, which supports 24-bit/96kHz Bluetooth formats like LDAC and aptX HD.

Plug and play

Plug and play the G5 with devices running Windows 10 (or above), Mac, Linux, iOS, or Android. The G5 is powered by a built-in 4000mAh battery, so it won’t drain your portable device’s battery.

Aluminum + leather

The G5 is gorgeously encased in a single sturdy piece of CNC aluminum. A faux leather bottom prevents the case from scratching other devices when stacked.

Protective corner guards

The G5 is designed with corner guards at both ends to protect the end panels, effectively preventing the volume knob from being accidentally adjusted in your pocket and greatly reducing the possibility of breaking the headphone plug.

25 hour battery life

TOPPING optimized the G5 architecture for maximum battery life. With less than five hours of charging time, the G5 can last 25 hours in Aux mode, 10 hours in Bluetooth mode, and 9 hours in USB mode.

Bundle it with a FiiO LT-LT1 cable

Get 24-bit/192kHz lossless output from your Apple device by connecting the G5 to it with the FiiO LT-LT1 cable. The skin-friendly yet durable multi-strand cotton mesh sheath feels great to the touch and is durable to withstand daily wear and tear for years to come.



Product highlights

  • Built-in NFCA headphone amp
  • ESS ES9068AS DAC chip
  • 24-bit LDAC audio
  • Hi-Res certified
  • Three inputs: USB, BT, AUX
  • Two outputs: 4.4mm bal, 3.5mm SE
  • 3 -step gain setting
  • Up to 25 hours on a single charge
  • 0.00009% THD+N
  • PCM 768kHz
  • DSD512
  • <0.1Ω output impedance
  • 1200mW x 2 output power
  • Aluminum body

Specs


USB IN maximum playback support

  • PCM: 32-bit/768kHz
  • DSD (Native): DSD512
  • DSD (DoP): DSD256

Bluetooth IN playback support

  • AAC, SBC, aptX, aptX LL, aptX HD, aptX Adaptive, LDAC

G5 DAC parameters

  • THD+N @1kHz (A-wt): <0.00009%
  • THD @20-20kHz 90kBw: <0.0002%
  • SNR @1kHz (A-wt): 124dB
  • Dynamic range @1kHz (A-wt): 124dB
  • Frequency response: 20Hz-20kHz (±0.1dB) / 20Hz-40kHz (±0.8dB)
  • Output level: 2.1Vrms @0dBFS
  • Noise (A-wt): <1.3uVrms
  • Channel crosstalk: -104dB @1kHz
  • Channel balance: 0.3dB
  • Output impedance: 50Ω

G5 headphone amplifier parameters

  • THD+N @1kHz (A-wt): <0.0001% @145mW (32Ω)
  • THD @20-20kHz (90kBW): <0.0008% @145mW (32Ω) / <0.0006% @15mW (300Ω)
  • SNR @ Max out 1kHz (A-wt): 124dB @1kHz
  • Dynamic range @1kHz (A-wt): 124dB@1kHz
  • Frequency response: 20Hz-20kHz (±0.1dB) / 20Hz-40kHz (±0.4dB)
  • Output level: Low gain: 1.1Vpp / Medium gain: 6Vpp / High gain: 21Vpp
  • Noise (A-wt): Low gain: <1.0Vrms / Medium gain: <1.5uVrms / High gain: 5.0uVrms
  • Channel crosstalk: -114dB @1kHz
  • Gain: Low gain: -8dB / Medium gain: 6.4dB / High gain: 18.2dB
  • Channel balance: 0.3dB
  • Output impedance: <0.1Ω
  • Output power
  1. 1000mW x 2 @16Ω THD+N <0.1%
  2. 1200mW x 2 @32Ω THD+N <0.1%
  3. 720mW x 2 @64Ω THD+N <0.1%
  4. 175mW x 2 @300Ω THD+N <0.1%
  5. 90mW x 2 @600Ω THD+N <0.1%
  • Load impedance: >8Ω
Product form

Portability meets performance The TOPPING G5 is a DAC/Amp that packs TOPPING’s classic NFCA architecture into a portable package. With... Read more

$299.00 Excl. VAT

      Description

      Portability meets performance

      The TOPPING G5 is a DAC/Amp that packs TOPPING’s classic NFCA architecture into a portable package. With 24-bit Bluetooth audio and top-of-the-line specs, it’s an ideal unit for audiophiles and enthusiasts alike.



      Built-in NFCA headphone amp

      The G5 uses an NFCA module specially developed for portable devices. It achieves an output power of 1200mW x 2, THD+N of 0.00007%, and an output impedance of <0.1Ω.

      24bit hi-def Bluetooth

      The G5 is certified Hi-Res Audio Wireless. It uses the newest Qualcomm QCC5125 chipset, which supports 24-bit/96kHz Bluetooth formats like LDAC and aptX HD.

      Plug and play

      Plug and play the G5 with devices running Windows 10 (or above), Mac, Linux, iOS, or Android. The G5 is powered by a built-in 4000mAh battery, so it won’t drain your portable device’s battery.

      Aluminum + leather

      The G5 is gorgeously encased in a single sturdy piece of CNC aluminum. A faux leather bottom prevents the case from scratching other devices when stacked.

      Protective corner guards

      The G5 is designed with corner guards at both ends to protect the end panels, effectively preventing the volume knob from being accidentally adjusted in your pocket and greatly reducing the possibility of breaking the headphone plug.

      25 hour battery life

      TOPPING optimized the G5 architecture for maximum battery life. With less than five hours of charging time, the G5 can last 25 hours in Aux mode, 10 hours in Bluetooth mode, and 9 hours in USB mode.

      Bundle it with a FiiO LT-LT1 cable

      Get 24-bit/192kHz lossless output from your Apple device by connecting the G5 to it with the FiiO LT-LT1 cable. The skin-friendly yet durable multi-strand cotton mesh sheath feels great to the touch and is durable to withstand daily wear and tear for years to come.



      Product highlights

      • Built-in NFCA headphone amp
      • ESS ES9068AS DAC chip
      • 24-bit LDAC audio
      • Hi-Res certified
      • Three inputs: USB, BT, AUX
      • Two outputs: 4.4mm bal, 3.5mm SE
      • 3 -step gain setting
      • Up to 25 hours on a single charge
      • 0.00009% THD+N
      • PCM 768kHz
      • DSD512
      • <0.1Ω output impedance
      • 1200mW x 2 output power
      • Aluminum body

      Specs


      USB IN maximum playback support

      • PCM: 32-bit/768kHz
      • DSD (Native): DSD512
      • DSD (DoP): DSD256

      Bluetooth IN playback support

      • AAC, SBC, aptX, aptX LL, aptX HD, aptX Adaptive, LDAC

      G5 DAC parameters

      • THD+N @1kHz (A-wt): <0.00009%
      • THD @20-20kHz 90kBw: <0.0002%
      • SNR @1kHz (A-wt): 124dB
      • Dynamic range @1kHz (A-wt): 124dB
      • Frequency response: 20Hz-20kHz (±0.1dB) / 20Hz-40kHz (±0.8dB)
      • Output level: 2.1Vrms @0dBFS
      • Noise (A-wt): <1.3uVrms
      • Channel crosstalk: -104dB @1kHz
      • Channel balance: 0.3dB
      • Output impedance: 50Ω

      G5 headphone amplifier parameters

      • THD+N @1kHz (A-wt): <0.0001% @145mW (32Ω)
      • THD @20-20kHz (90kBW): <0.0008% @145mW (32Ω) / <0.0006% @15mW (300Ω)
      • SNR @ Max out 1kHz (A-wt): 124dB @1kHz
      • Dynamic range @1kHz (A-wt): 124dB@1kHz
      • Frequency response: 20Hz-20kHz (±0.1dB) / 20Hz-40kHz (±0.4dB)
      • Output level: Low gain: 1.1Vpp / Medium gain: 6Vpp / High gain: 21Vpp
      • Noise (A-wt): Low gain: <1.0Vrms / Medium gain: <1.5uVrms / High gain: 5.0uVrms
      • Channel crosstalk: -114dB @1kHz
      • Gain: Low gain: -8dB / Medium gain: 6.4dB / High gain: 18.2dB
      • Channel balance: 0.3dB
      • Output impedance: <0.1Ω
      • Output power
      1. 1000mW x 2 @16Ω THD+N <0.1%
      2. 1200mW x 2 @32Ω THD+N <0.1%
      3. 720mW x 2 @64Ω THD+N <0.1%
      4. 175mW x 2 @300Ω THD+N <0.1%
      5. 90mW x 2 @600Ω THD+N <0.1%
      • Load impedance: >8Ω
